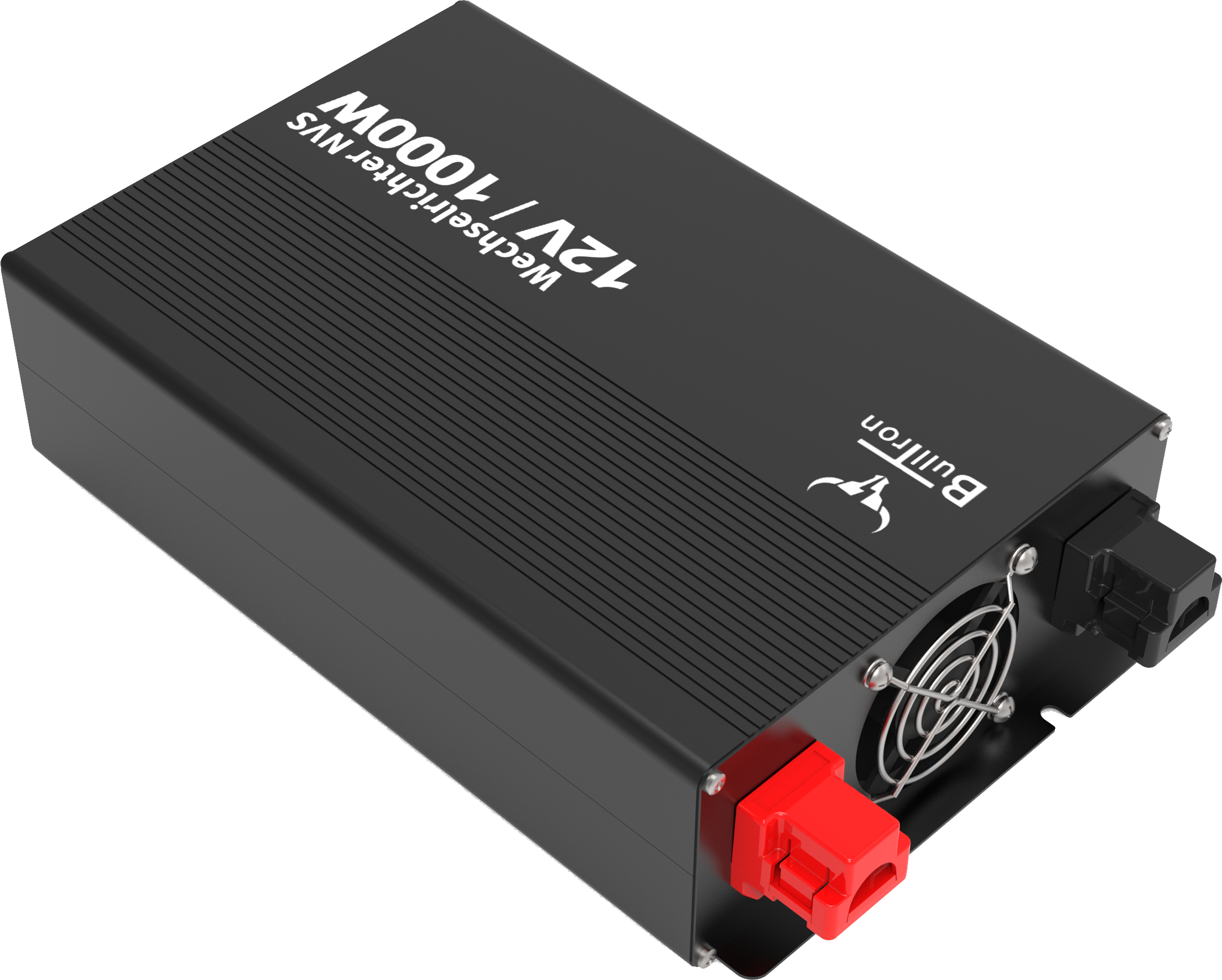

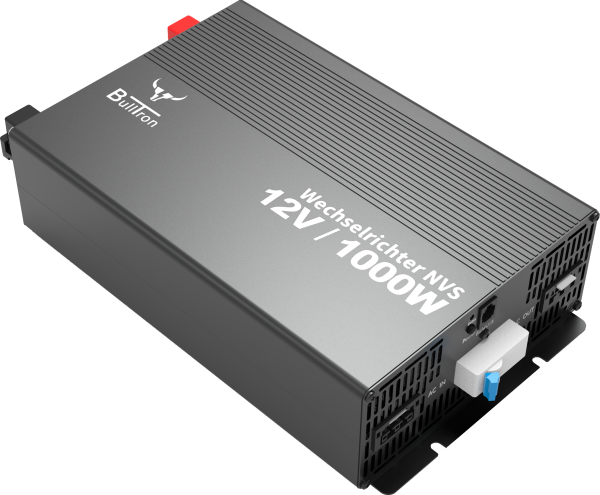

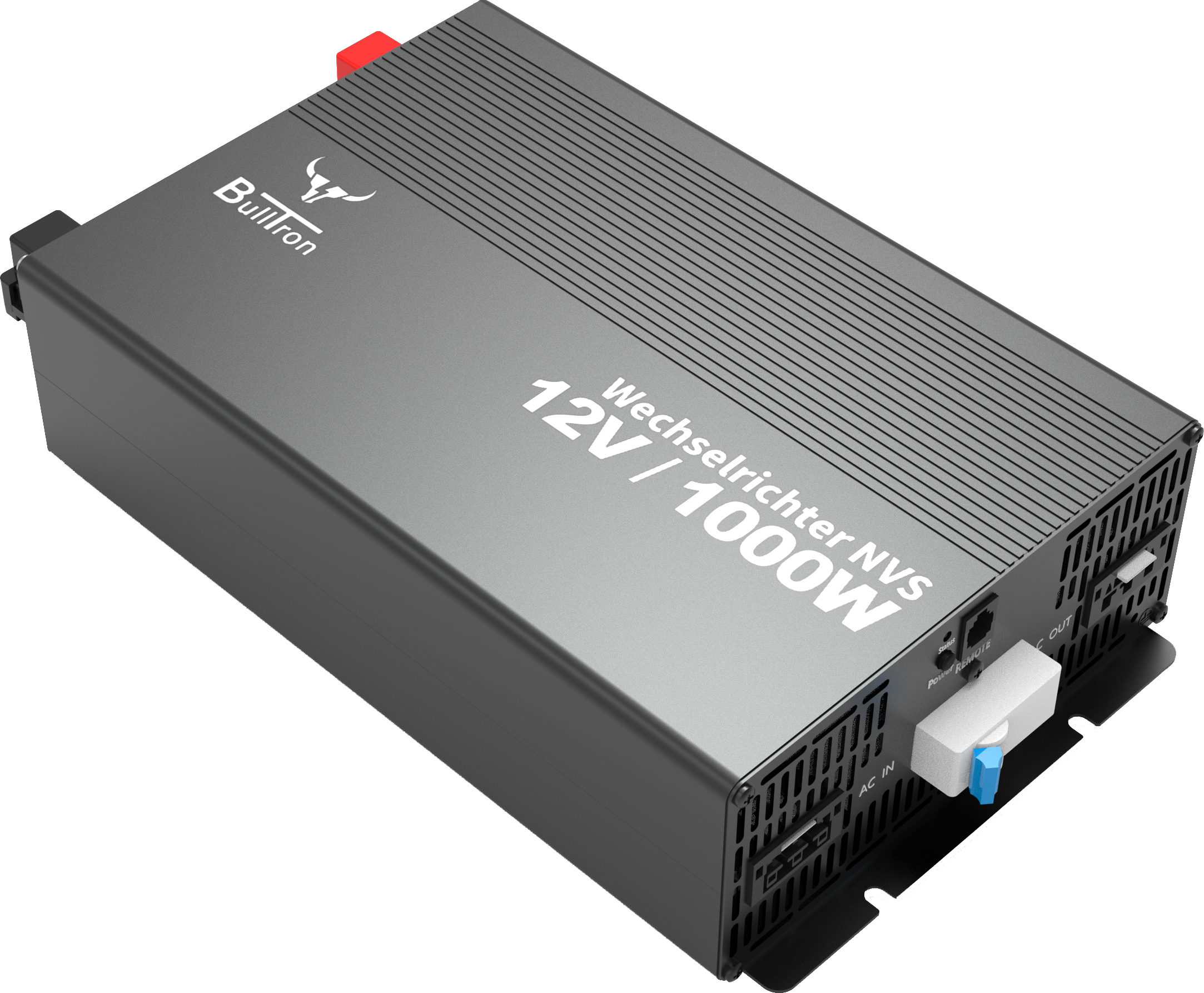

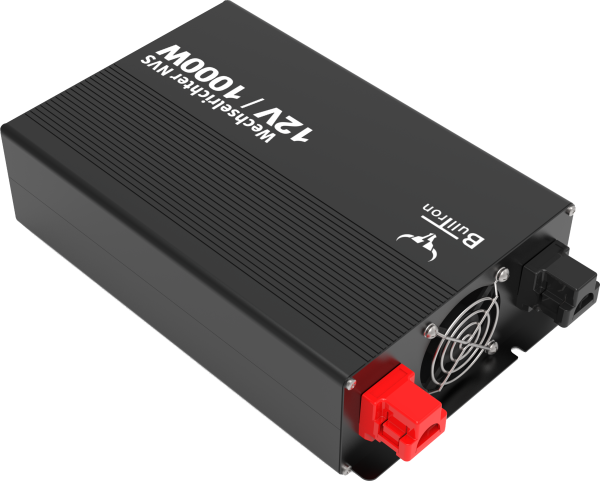

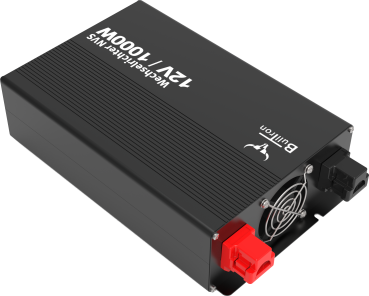

BullTron 1000W Inverter 12V/230V with Grid Priority Circuit
Optimal inverter with all convenient features
(grid priority circuit, 16A fuse, residual current device, ON/OFF remote control)
BullTron inverters are designed and equipped to meet the requirements of specialized motorhome workshops.
They enable simple and time-saving installation without sacrificing convenience and safety.
All important functions and features are already integrated. This saves a lot of material and time during installation.
In addition, they significantly reduce space and weight, which is always a crucial factor in motorhomes.
With this inverter, you can charge e-bikes and laptops, use a travel hairdryer or kettle, etc., up to 1000W in your motorhome (whether powered by shore power or autonomously).
Easy Installation
- All you need to do is connect the battery to the inverter (don't forget a 100A fuse in the positive cable and use a sufficiently thick cable, min. 25mm²).
- Now all you need to do is plug the desired 230V device into the socket and turn on the inverter.
- The inverter can be switched ON/OFF directly on the inverter's display or using the separate remote ON/OFF switch.
- The integrated display also shows the voltage and power.
You can now use all sockets and connected 230V devices in your motorhome via shore power or the inverter/battery.
Devices that are not to be used via the inverter/battery, but only with shore power, are simply connected to the WAGO Winsta connector on the AC input.
Additional connection points are provided there.
Advantages of BullTron inverters
- Extremely small dimensions
- Very low weight
- Easy installation
- No additional material or labor required
- Illuminated remote ON/OFF switch with 5m cable
- Uses high-quality and durable components
- Can be mounted under the seat together with the battery
- Integrated short-circuit protection
Technical Specifications
- Type: W1000-12-NVFILS
- Power (continuous/peak): 1000W / 2000W
- AC Voltage: 230V
- Frequency: 50Hz ± 0.5Hz
- DC Voltage: 12V DC
- Voltage Range: 10V – 15V
- Sine Wave: Pure Sine Wave
- AC Regulation: THD <3%
- Efficiency: 91%
- Protection Class: IP20
- Temperature Range: -30°C to +70°C
- Weight: 2.7 kg
- Dimensions (L x W x H) in mm: 320 x 197 x 82
- Installation Options: Vertical or Horizontal
- Certifications: CE, ECE R10, E-Mark
Additional Features
- Fuse: 16 A
- Residual current circuit breaker: 30 mA
- Monitoring: Illuminated ON/OFF switch, with 5m cable for connection to the inverter
- Fan Control: Temperature-controlled speed
- Inverter Start: Soft start
- Short Circuit Protection: Yes, with internal fuses

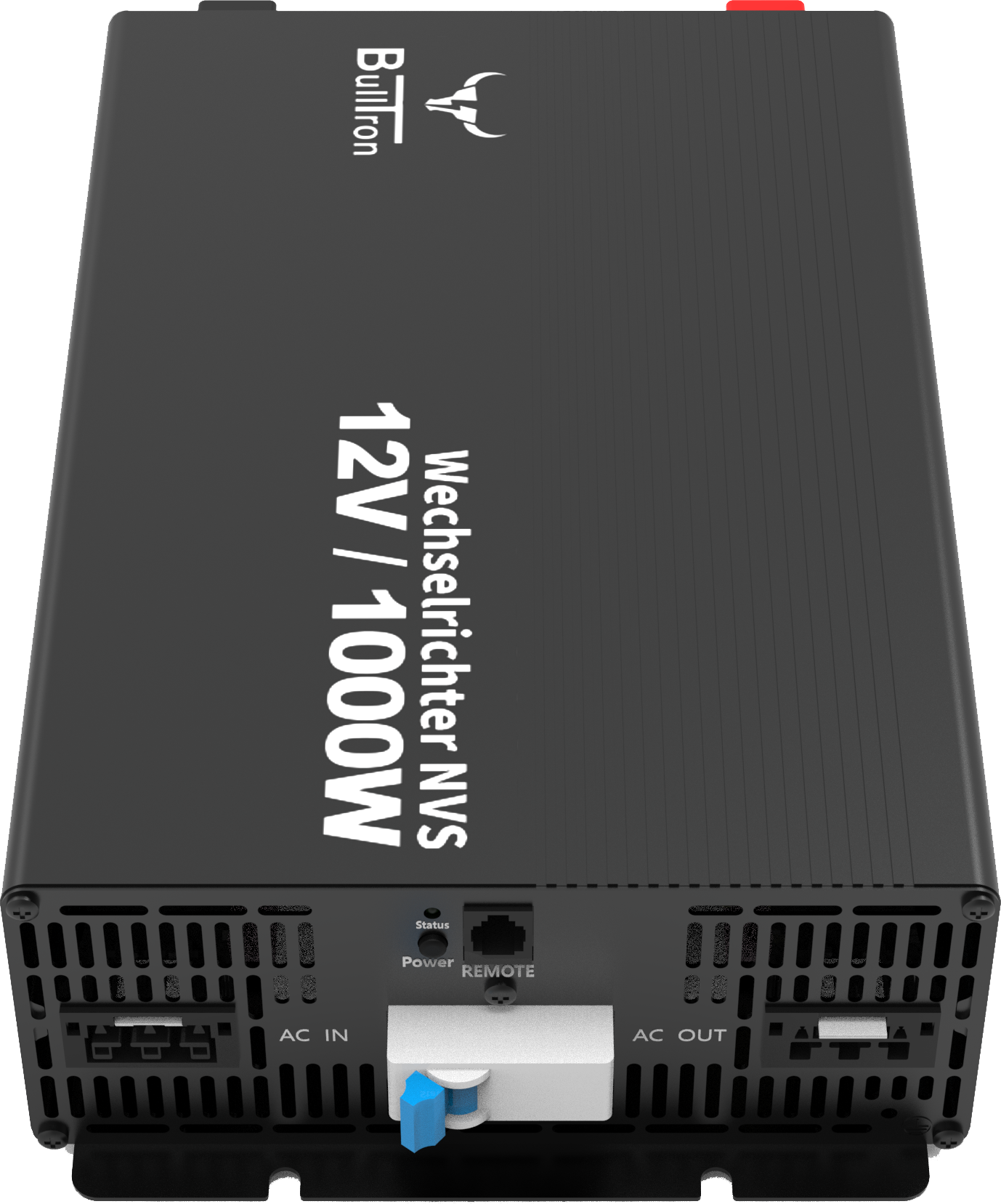

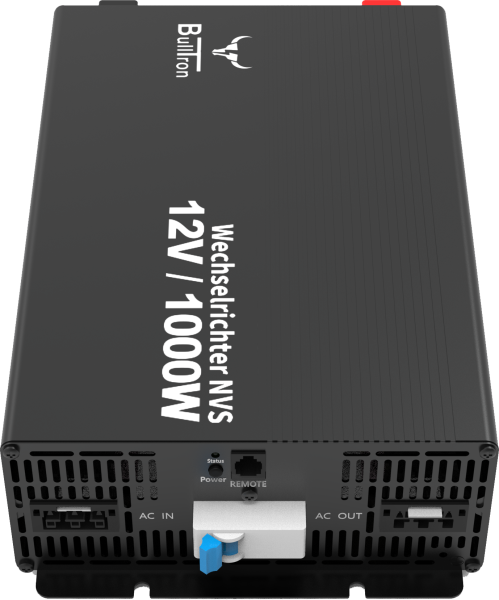

- AC Input Connection: Wago Winsta with strain relief incl.
- AC Output Connection: Wago Winsta with strain relief incl.

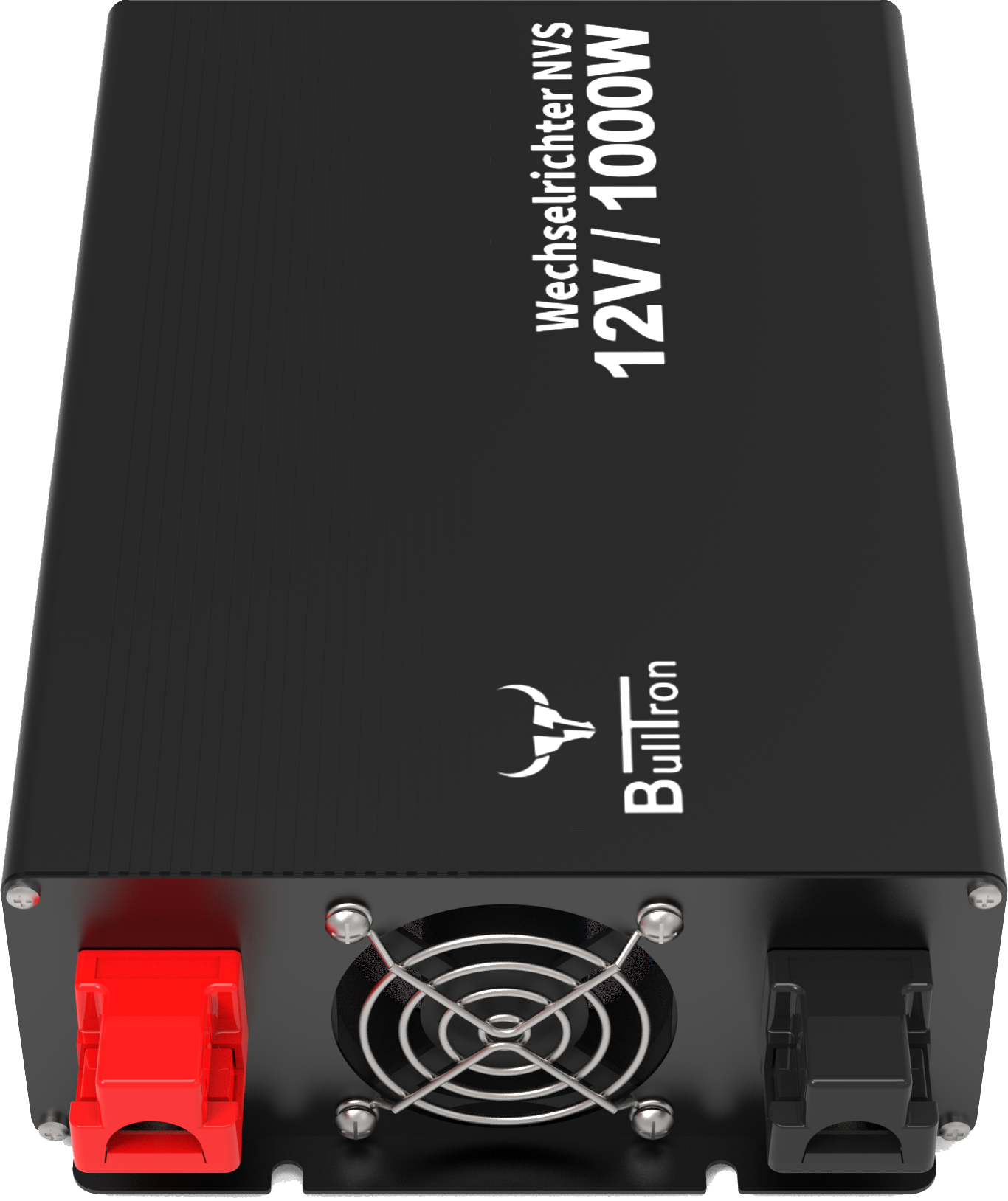

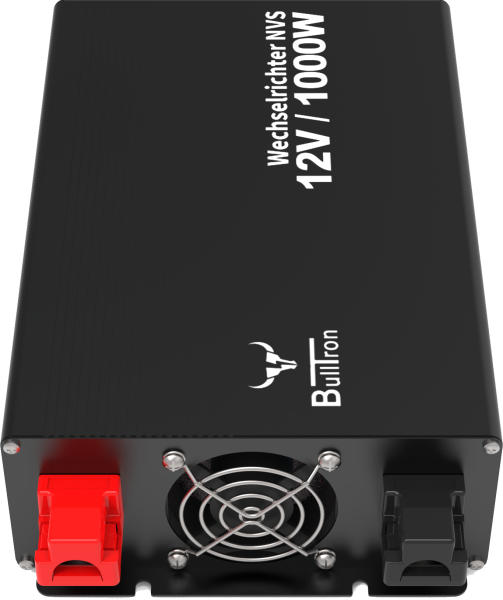

- DC Connection (Battery): M8 screw terminal
- Recommended DC cable fuse: 100A
- Recommended DC cable cross-section: min. 25mm² (depending on cable length)
- Warranty: 2-year manufacturer's warranty, 5-year optional, see button above

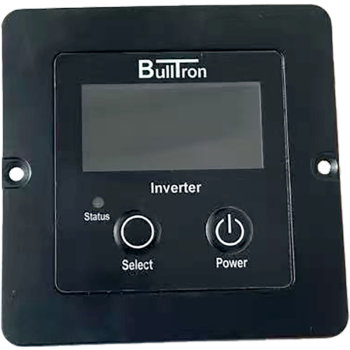

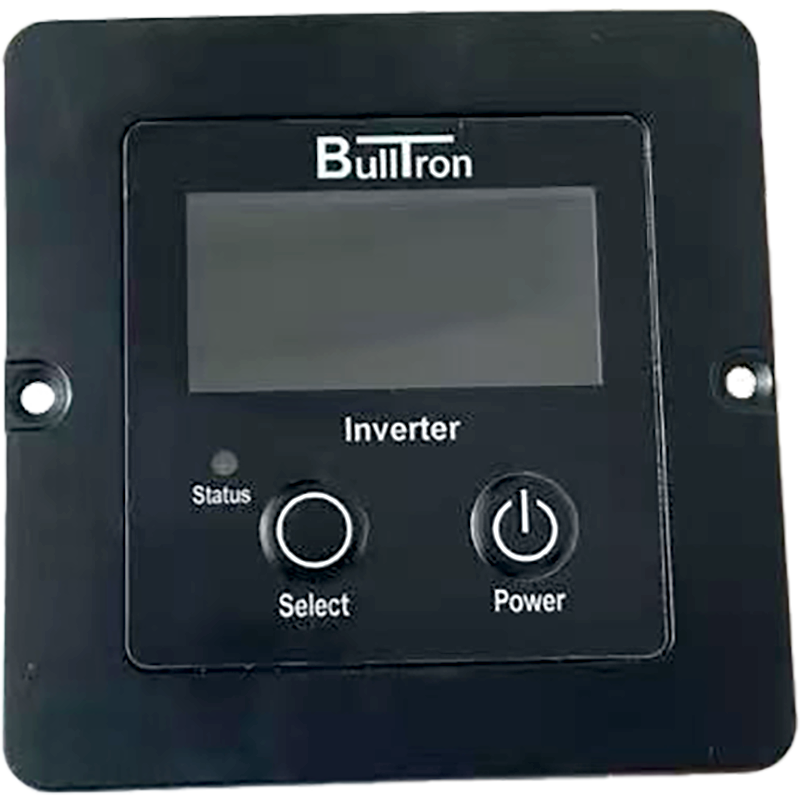

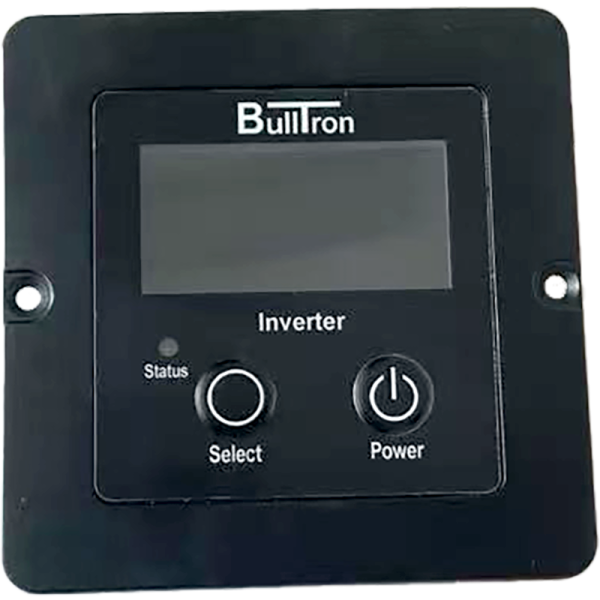

Optional Accessory: Function Remote Control / Display Power Settings, see button above
(Image similar, technical changes subject to change)
