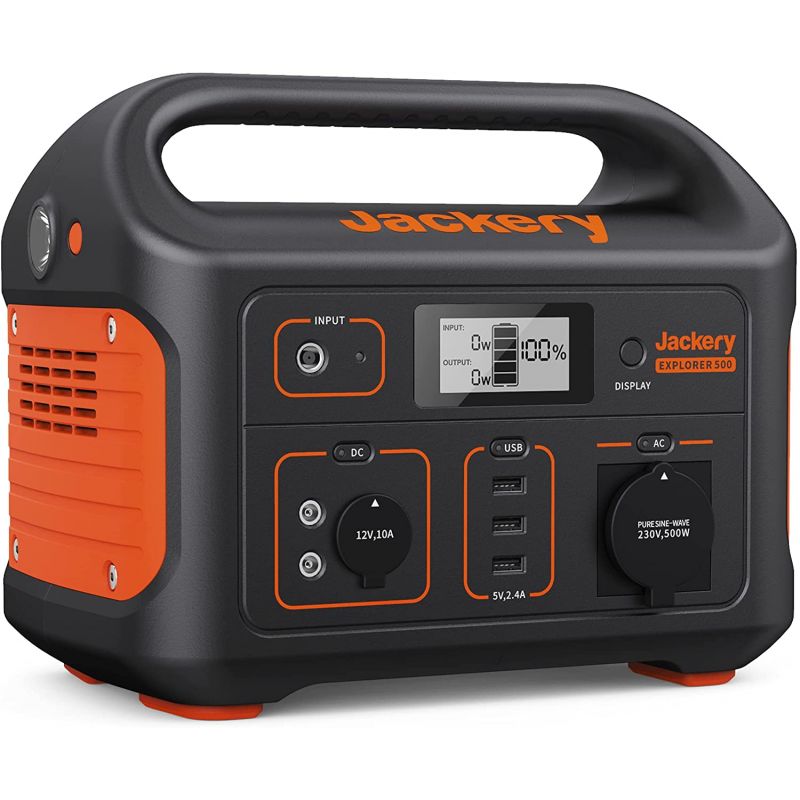

Jackery Explorer 500 Portable Powerstation

Jackery Explorer 500 - Mobile power supply on the go - 230V | 12V | USB-A - versatile in use
- Mobile home, Camper and Caravan
- Plane or Boat
- Camping
- Workshop
- Garden
- as Powerbank / Emergency Power Supply
Portable power station for numerous applications
with a 518 Wh (24Ah) lithium battery capacity, a rated power of 500 W (peak power 1000 W) and multiple charge/recharge ports, it meets the needs of powering high and powerful electronic devices.
With its pure sine curve, the Jackery Power Station is suitable for 230V devices such as:
- Laptop
- Charger
- Coffee Machine
- Cool box
- TV
- Toothbrush
- Razor
- Blender
- Vacuum Cleaner
- Lighting
The alternative for bus DIY hobbyists - omission of the inverter
Jackery Explorer 500 with 230 volts: when used in a camper or mobile home, there is no need for the complicated and expensive installation of an inverter with cabling and protection for a 230V onboard system.
Power supply with 230 volts through the compact Explorer 500, inside and outside the vehicle.

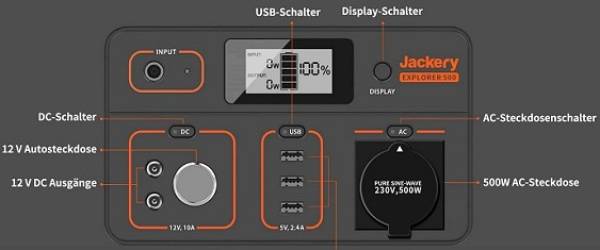

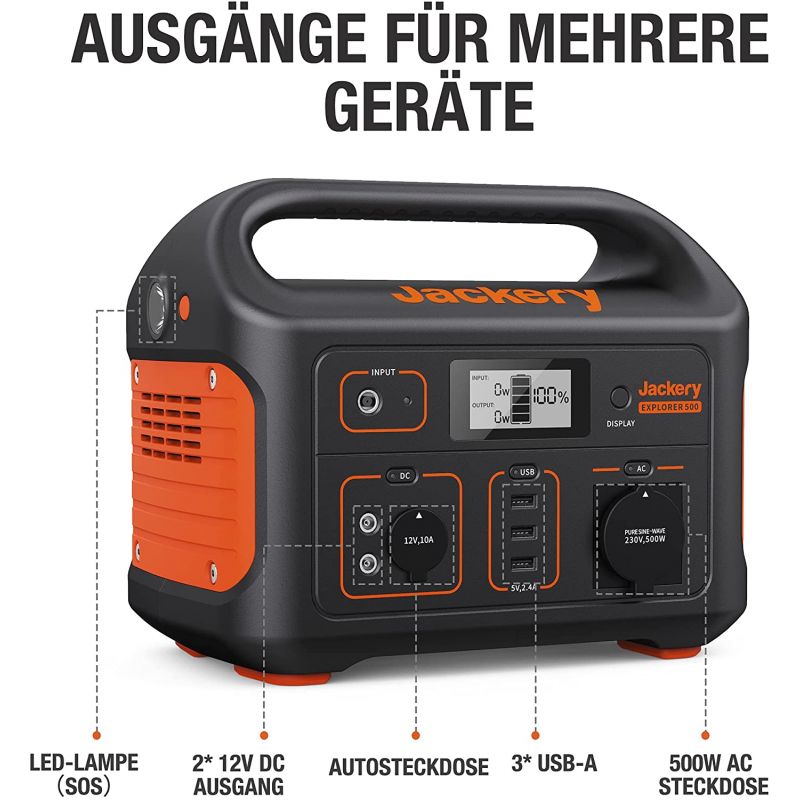

Connections
AC-out: 230V, 500W (1000W max.)
- USB-A: 3x 5V, 2,4A
- DC out: 2x 12V, = 7A
- Auto-out: 12V, 10A
- DC-input: 12V-30V (max. 90W)

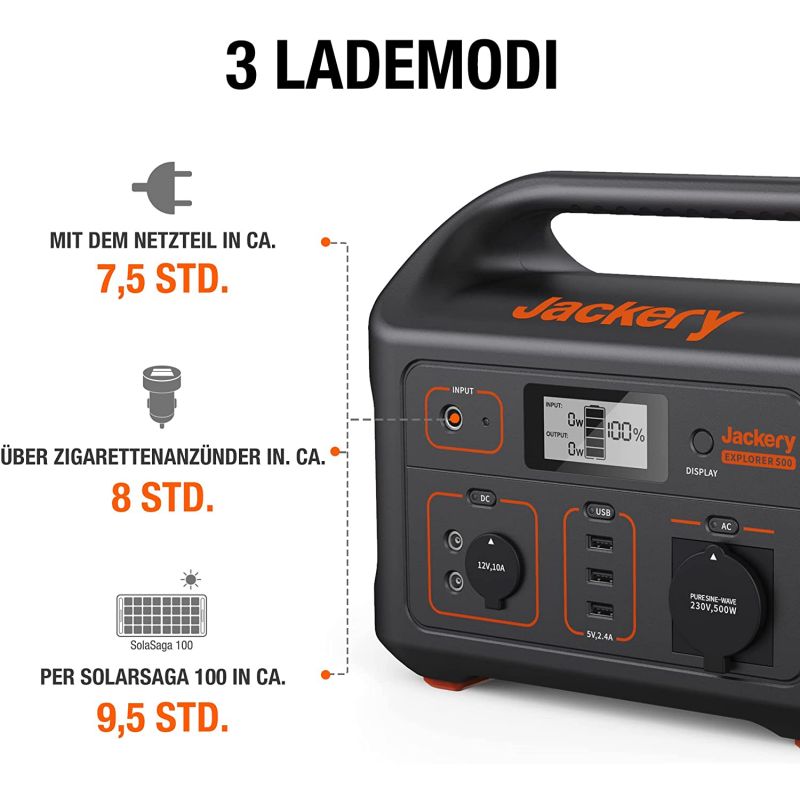

Charge times
- AC-Adapter: ~7,5 hrs.
- 12V Auto-Adapter: ~7.5 hrs.
- 1x SolarSaga 100 Solarpanel: ~9.5 hrs. (depending on wheather conditions)
Technical Data
- Capacity: 518 Wh (21,6 V, 24 Ah)
- Cell chemistry: Li-Ion NMC
- Life cycles: ≥500 cycles with up to 80%
- Management System: BMS, overheat protection, overvoltage protection, short circuit protection, overcharge protection
- Weight: 6.4 kgs

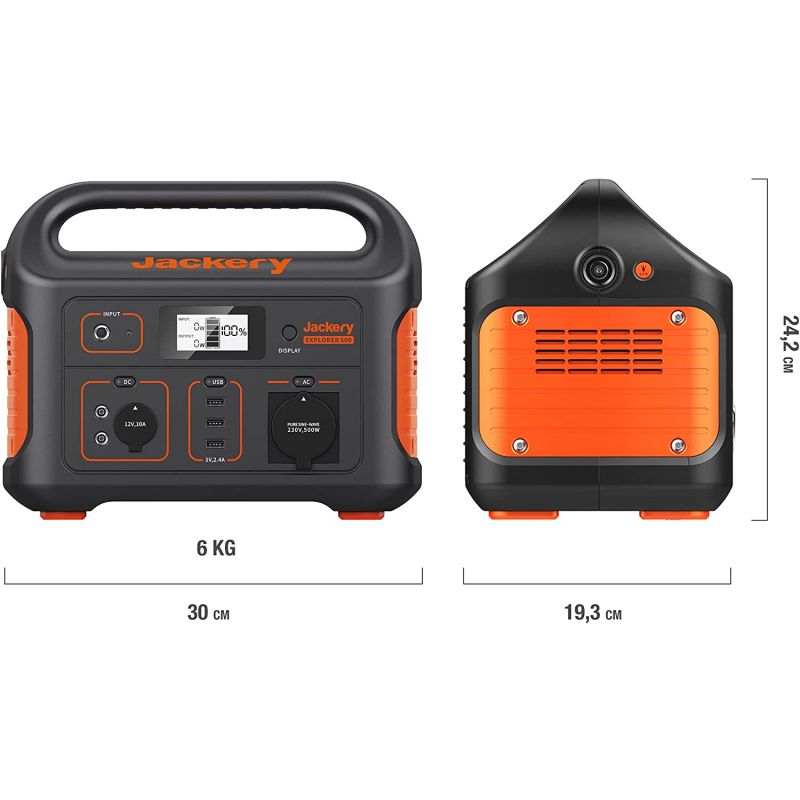

- Dimensions (LxWxT): 330 x 193 x 242 mm
- Operating Temperatures: -20 bis 40°C
- Certifications: UN 38.3 / RoHS / REACH / WEEE / CE
- Optional Accessories: Jackery SolarSaga 100 Solarpanel
Delivery Content
- Jackery 500 EU (230V type)
- Auto charge cable 12 V
- Charger 230 V
- Manual
Shipping abroad only on request
(Image similar, subject to technical changes)
