Battery BullTron LiFePO4 - 12V / 750 Ah - Polar

750Ah BullTron Underseat Polar | Maximum power in a compact design

750Ah LiFePO4 12.8V Polar battery with smart dual BMS, Bluetooth app, 5A active balancer, and heating element.
Suitable for use in temperatures from -30°C to 60°C.

Safest Lithium Technology (LiFePO4)

BullTron batteries utilize lithium iron phosphate (LiFePO4) technology, currently the safest lithium technology on the market.
All batteries consist of high-performance and highly durable LiFePO4 cells and an integrated Battery Management System (BMS).
The BMS continuously protects individual cells and the entire battery from over/undervoltage, over/undertemperature, overload, and short circuits.
The BMS effectively prevents premature battery failure due to external influences or improper use.
Another advantage is a weight reduction of up to 80% compared to conventional batteries of the same design and capacity.

Advantages of BullTron Batteries

Assembly and installation in Germany
5-year German manufacturer's warranty, optionally extendable to 10 years, see button above!
Service, maintenance, and repair in Germany
Screwed housing (can be opened)
No glued or welded components
All components (cells and BMS) replaceable (screwed)
Use of high-quality and durable components
Longer cycle life than most comparable batteries
Smaller and lighter than most comparable batteries
All battery sizes suitable for under-seat mounting

Technical Specifications

Type: LI750B500-12-UP
Nominal Voltage: 12.8 V
Nominal Capacity: 750 Ah / 9600 Wh
Cycle Life (at 80% remaining capacity):
- ≥ 4000 cycles at 100% DOD (Depth of Discharge)
- ≥ 7000 cycles at 80% DOD (Depth of Discharge)
Charging Characteristic: CCCV / IU
Charging Cut-off Voltage: 14.2 - 14.6 V
Recommended Maximum Charging Current: 250 A
Maximum Charging Current: 200 A
Continuous Discharge Current: 500 A
Maximum Discharge Current: 1000 A

Further Features of BullTron LiFePO4 Batteries

Battery Management System (BMS): Integrated Smart BMS with balancer
Monitoring: Bluetooth 4.0 with smartphone app, Free app available for Android & iOS
Application/Connection: 12V installation
- Parallel connection of 12V batteries is possible (increases capacity)
- Series connection of batteries is NOT possible
Protection class: IP 45
Temperature range (discharge): -30°C ~ +60°C
Temperature range (charge*): -30°C ~ +55°C
Temperature range (storage): -30°C ~ +60°C
Connection: M10
Installation options: Upright and horizontal
Weight: ~60 kg
Dimensions: 380 x 360 x 220 mm (L x W x H)

*The integrated heater activates at temperatures below 0°C when a charging current is applied. The integrated heater does not discharge the battery.

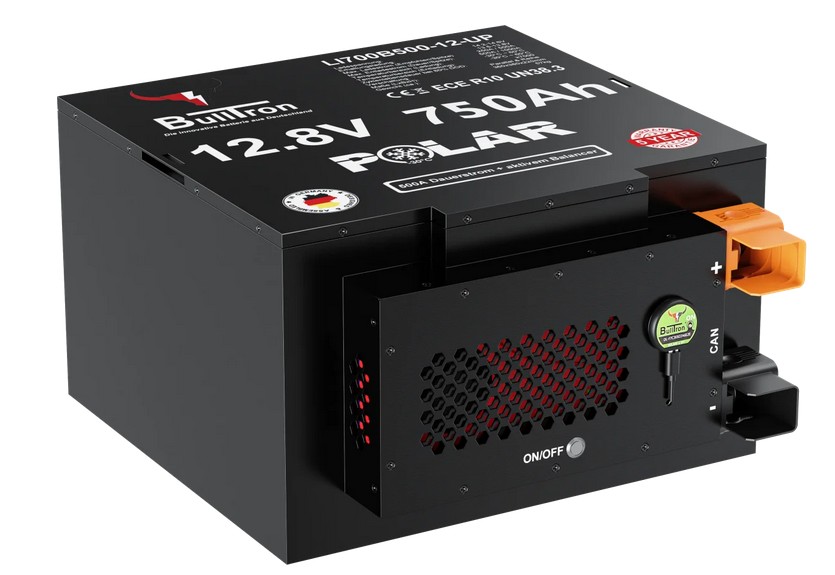

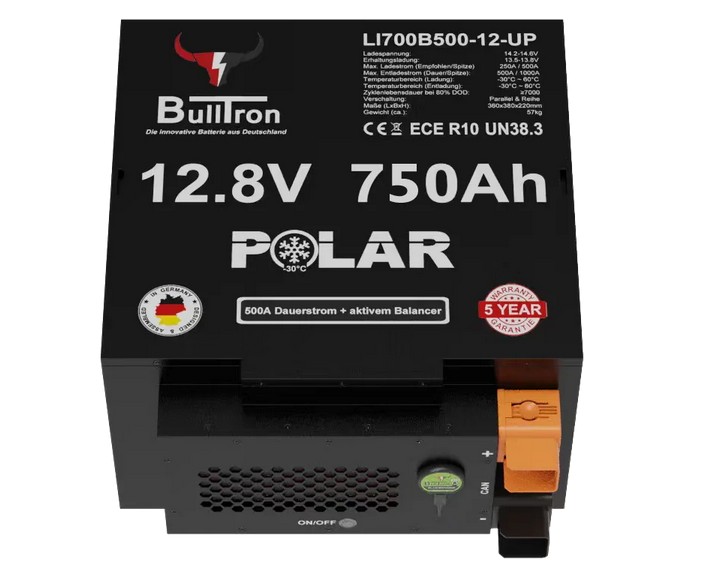

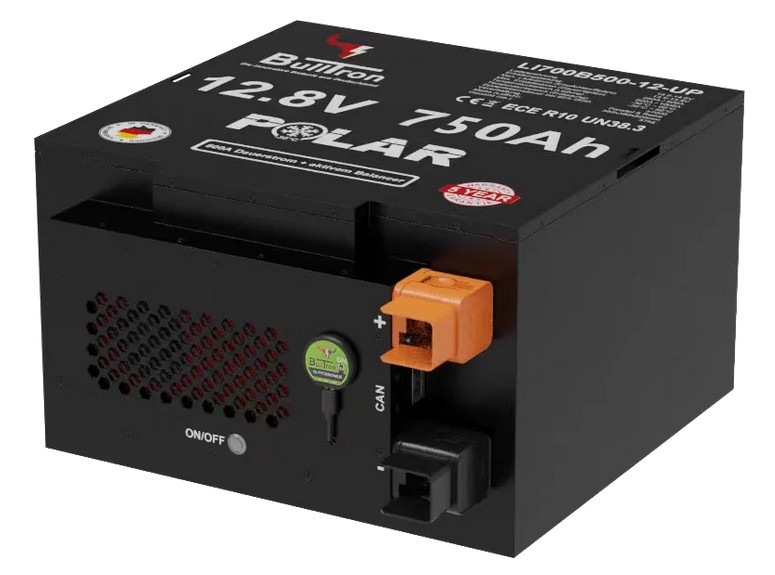

(Image similar, older version 700Ah is shown, technical changes reserved)
