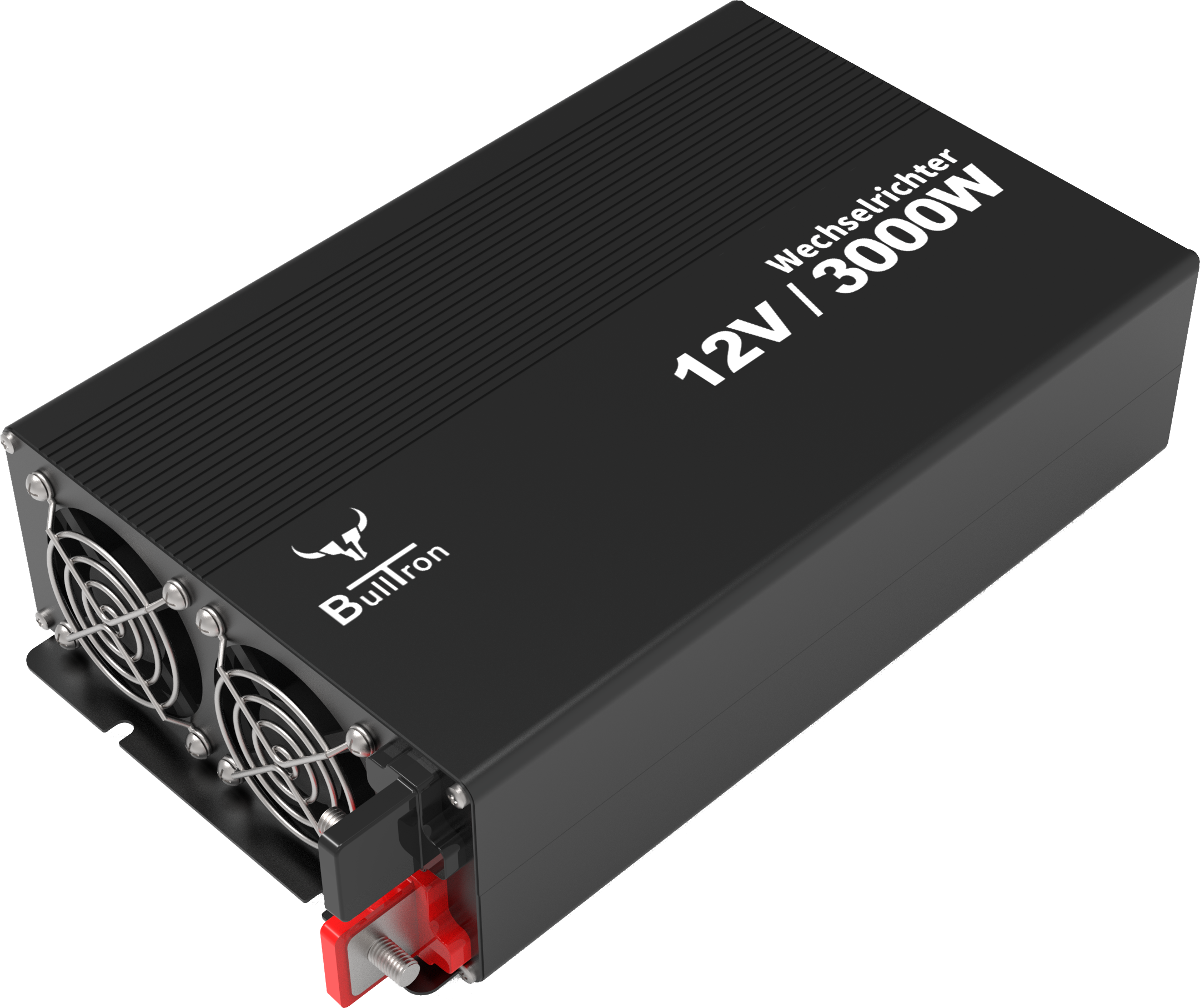

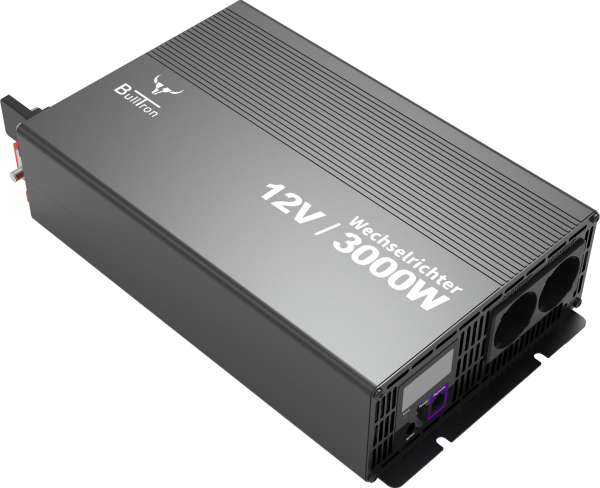

BullTron Inverter 3000W Standard

BullTron 3000W Inverter 12V/230V

Small inverter with high performance

This inverter was designed for installation by private users to ensure the easiest possible installation without extensive technical knowledge.
It offers significant space and weight savings, which are always crucial in a motorhome.
With this inverter, you can use all standard household appliances with a power output of up to 3000W in your motorhome (whether powered by shore power or autonomously).


Easy Installation

• All you need to do is connect the battery to the inverter (don't forget a 300A fuse in the positive cable and use a sufficiently thick cable, min. 70mm²).
• Now all you need to do is plug the desired 230V device into the socket and turn on the inverter.
• The inverter can be switched ON/OFF directly on the inverter's display or using the separate remote ON/OFF switch.
• The integrated display also shows the voltage and power.
• With this inverter, you can power a wide range of electrical devices, such as:
  • Charging a laptop
  • Charging an electric toothbrush
  • Sleeping mask
  • Charging an e-bike
  • Kettles, coffee machines
  • hair dryers
  • etc. up to 3000W

Advantages of BullTron inverters

• Extremely small dimensions
• Very low weight
• Easy installation
• No additional material or labor required
• Illuminated remote ON/OFF switch, with 5m cable
• Uses high-quality and durable components
• Can be mounted under the seat together with the battery
• Integrated short-circuit protection

Technical Specifications

• Type: W3000-12
• Power (continuous/peak): 3000W / 6000W
• AC Voltage: 230V
• Frequency: 50Hz ± 0.5Hz
• DC Voltage: 12V DC
• Voltage Range: 10V – 15V
• Sine Wave: Pure Sine Wave
• AC Regulation: THD <3%
• Efficiency: 91%
• Protection Class: IP20
• Temperature Range: -30°C to +70°C
• Weight: 3.8 kg
• Dimensions (L x W x H) in mm: 352 x 197 x 82
• Installation Options: Vertical or Horizontal
• Certifications: CE, ECE R10, E-Mark

Additional Features

• Mains Priority Switch: No, externally possible
• Fuse: No, externally possible
• Residual Current Device: No, externally possible
• Monitoring: Illuminated ON/OFF switch, with 5m cable for connection to the inverter
• Fan Control: Temperature-controlled speed
• Inverter Start: Soft start
• Short Circuit Protection: Yes, with internal fuses
• AC Input Connection: Not available
• AC Output Connection: Double socket
• DC Connection (Battery): M8 screw terminal
• Recommended DC cable fuse: 300A
• Recommended DC cable cross-section: min. 70mm² (depending on cable length)
• Warranty: 2-year manufacturer's warranty, 5-year optional, see button above

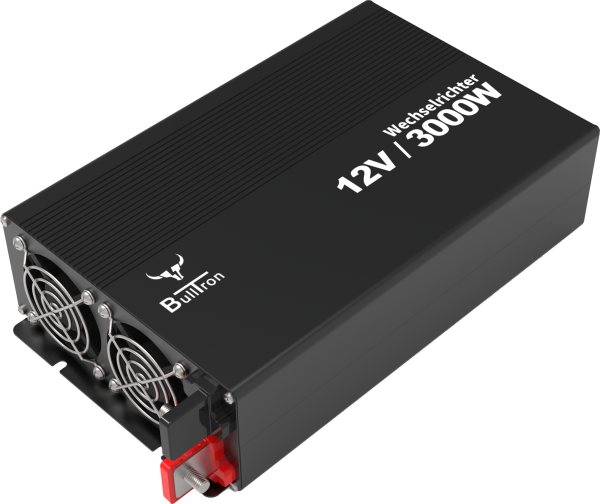

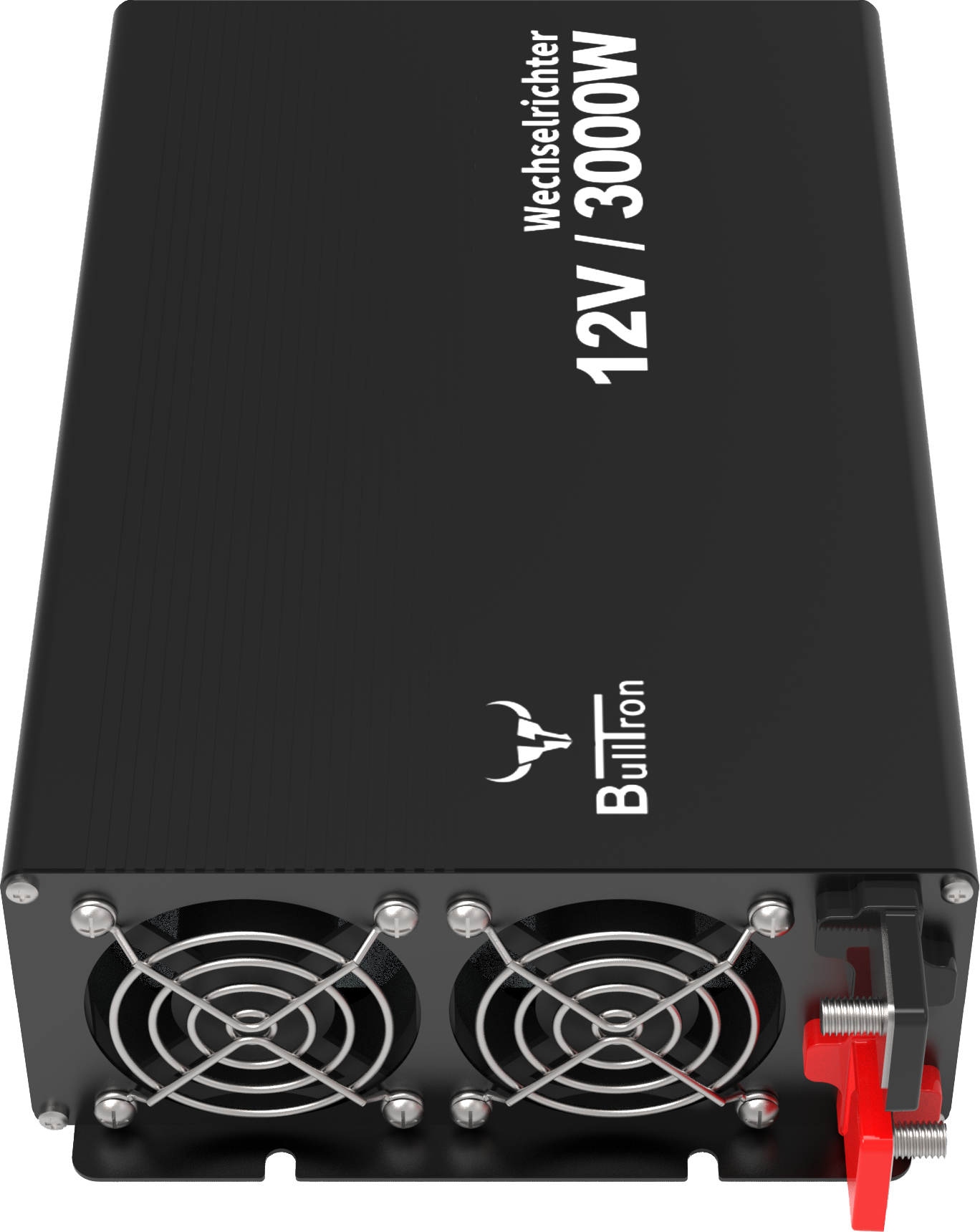

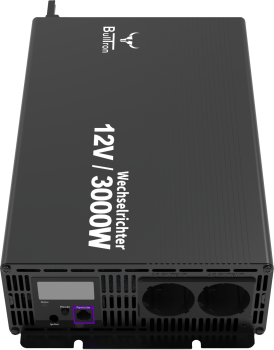

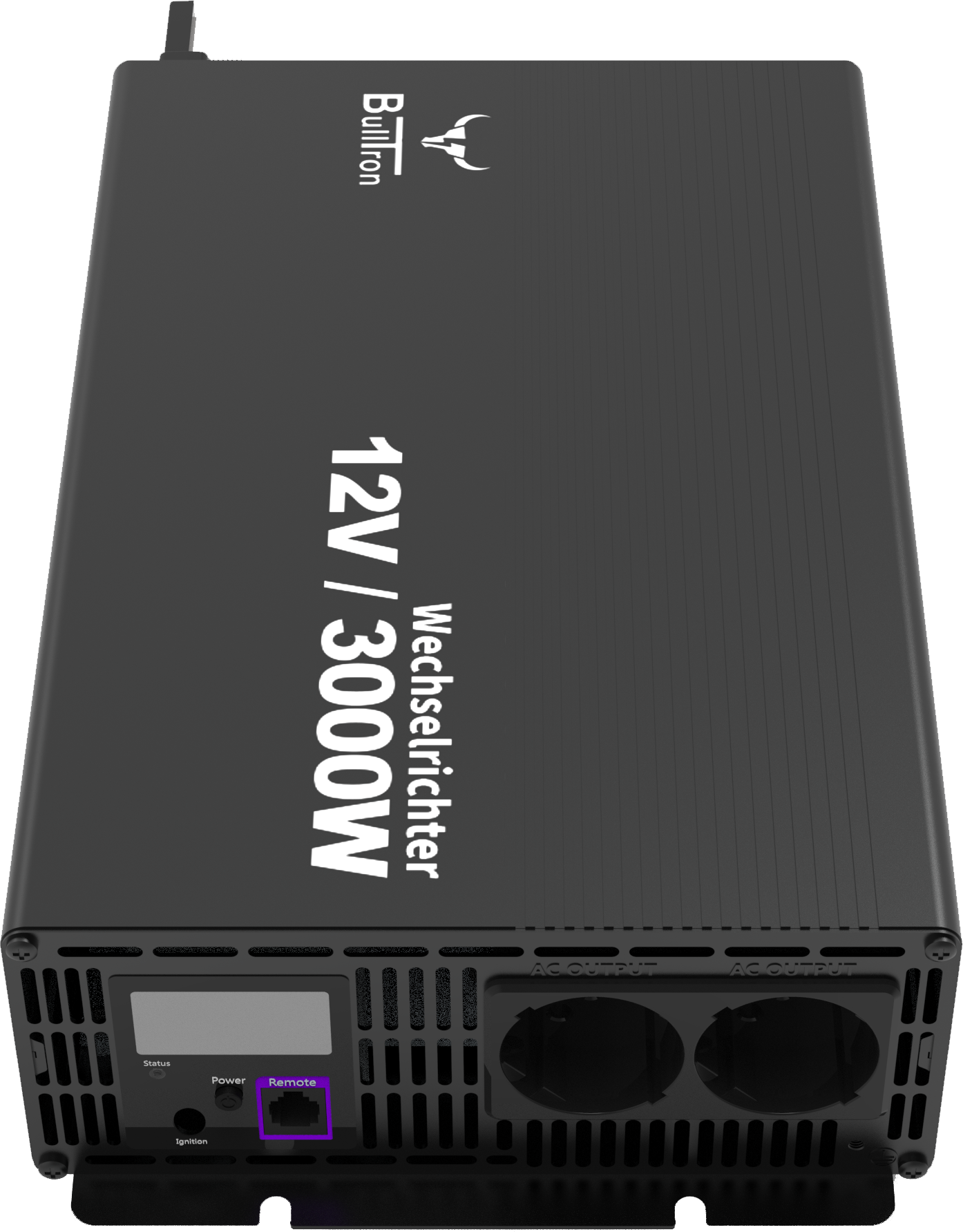

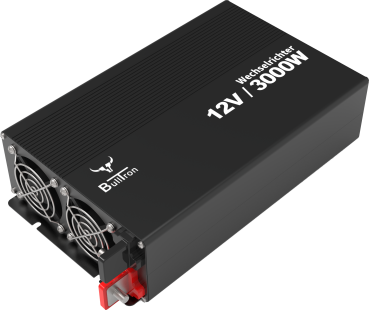

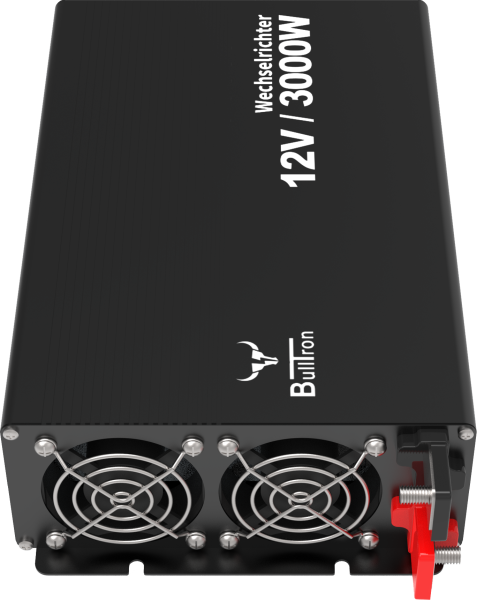

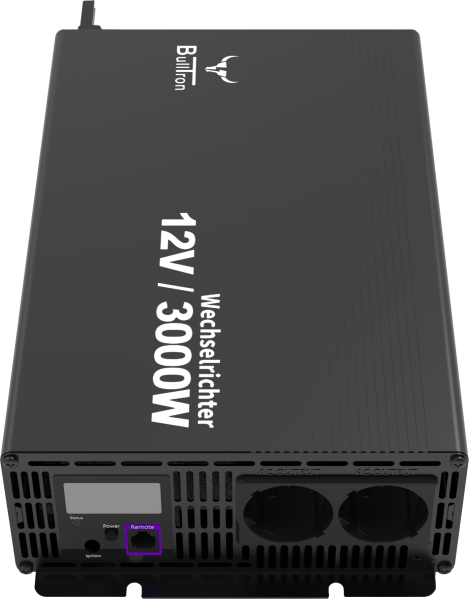

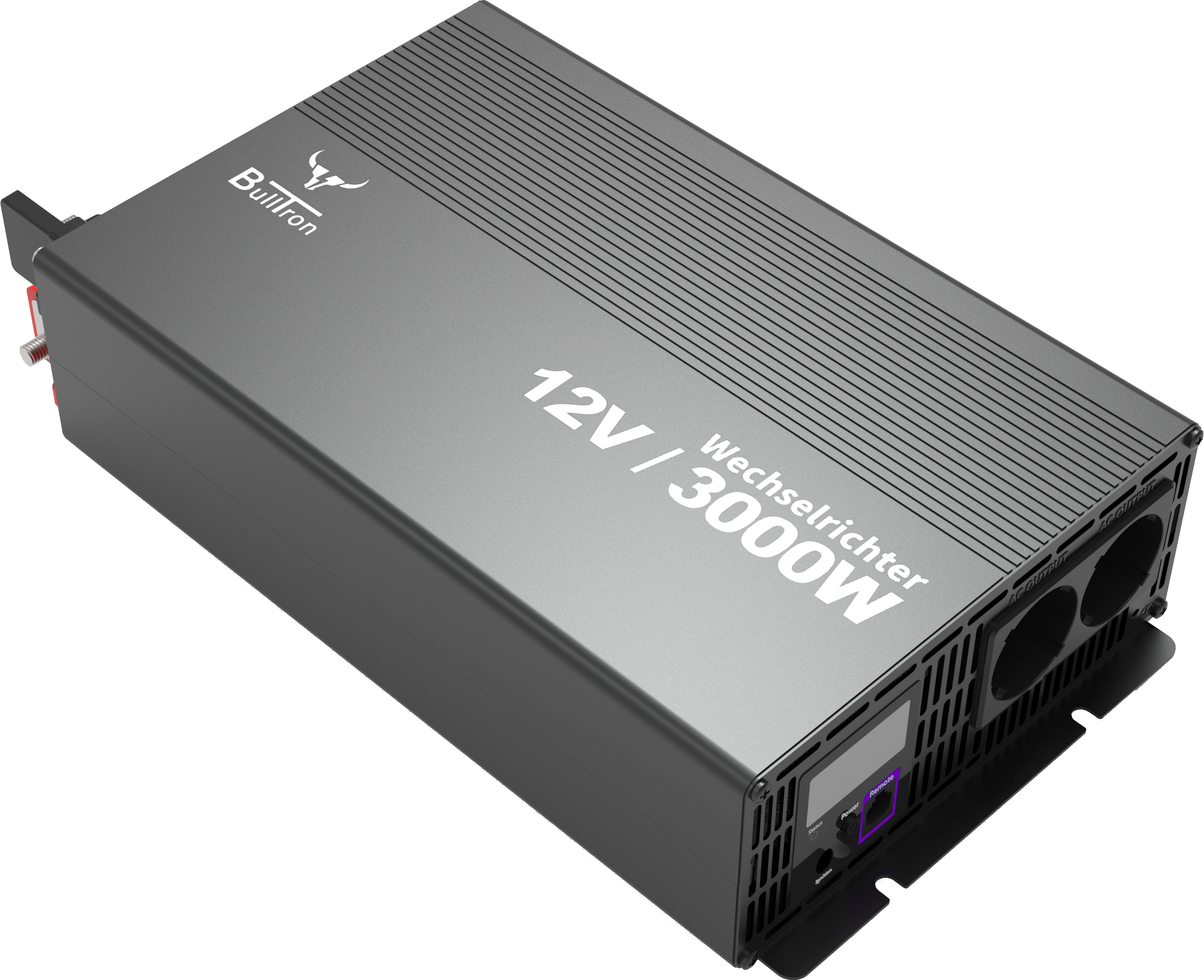

(Image similar, technical changes subject to change)
