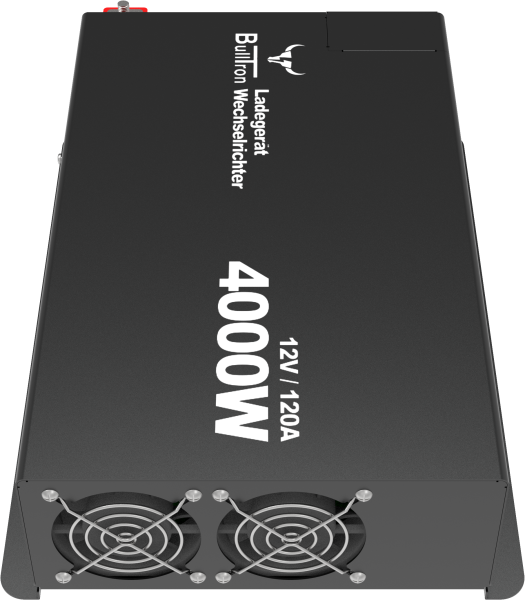

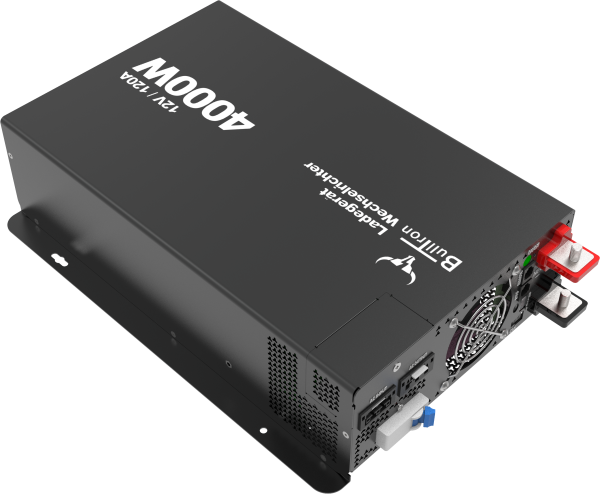

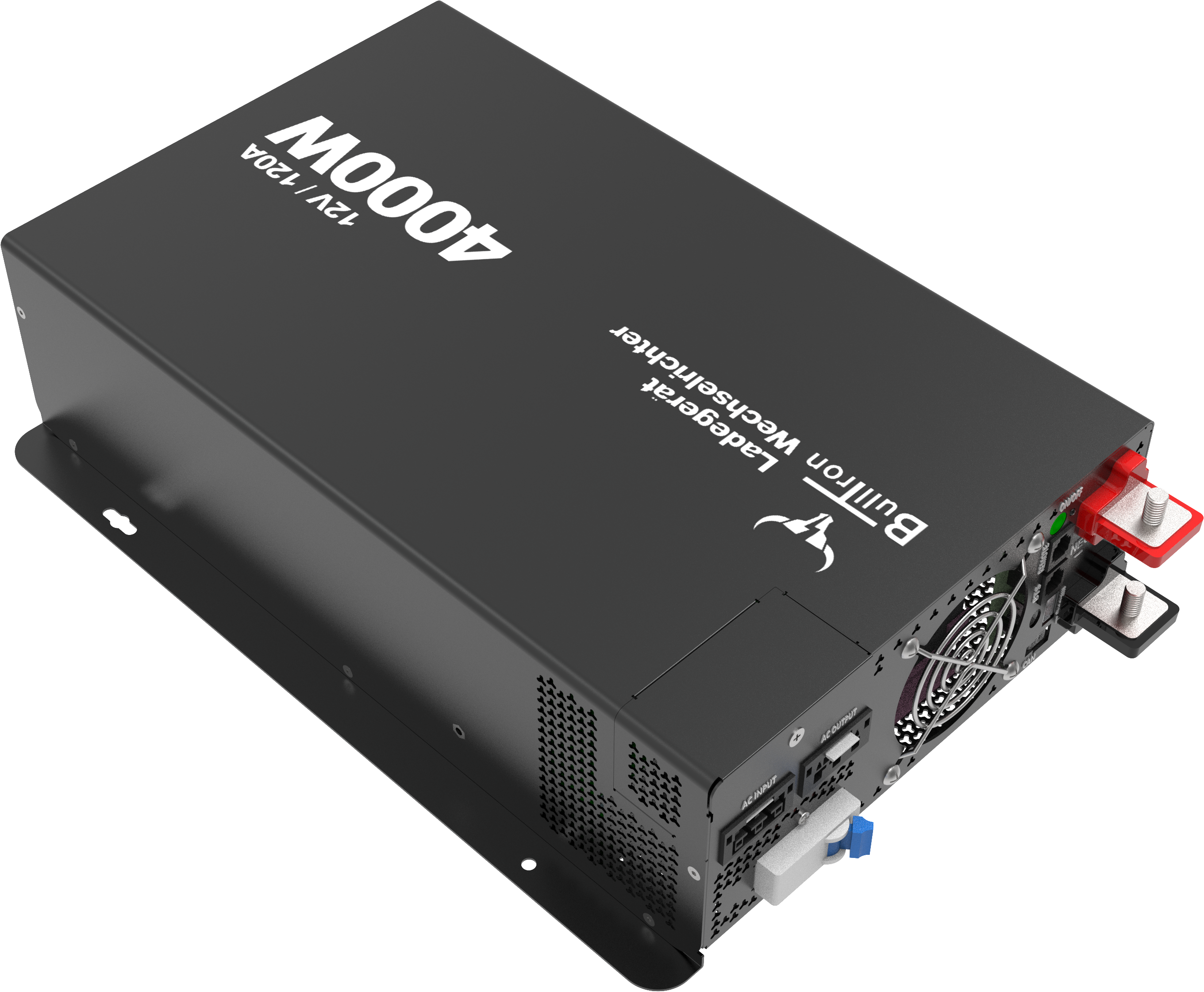

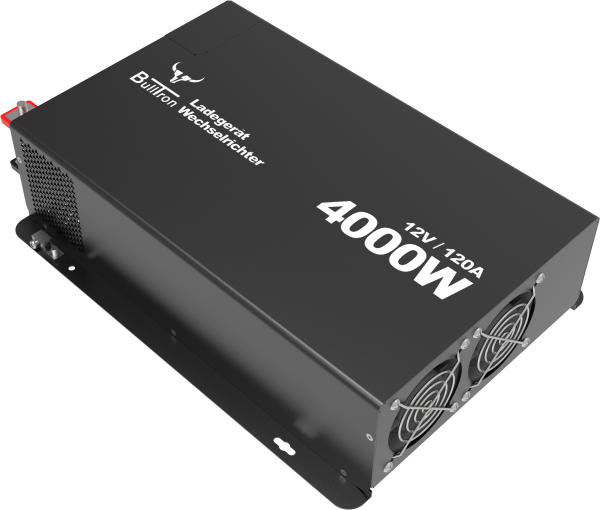

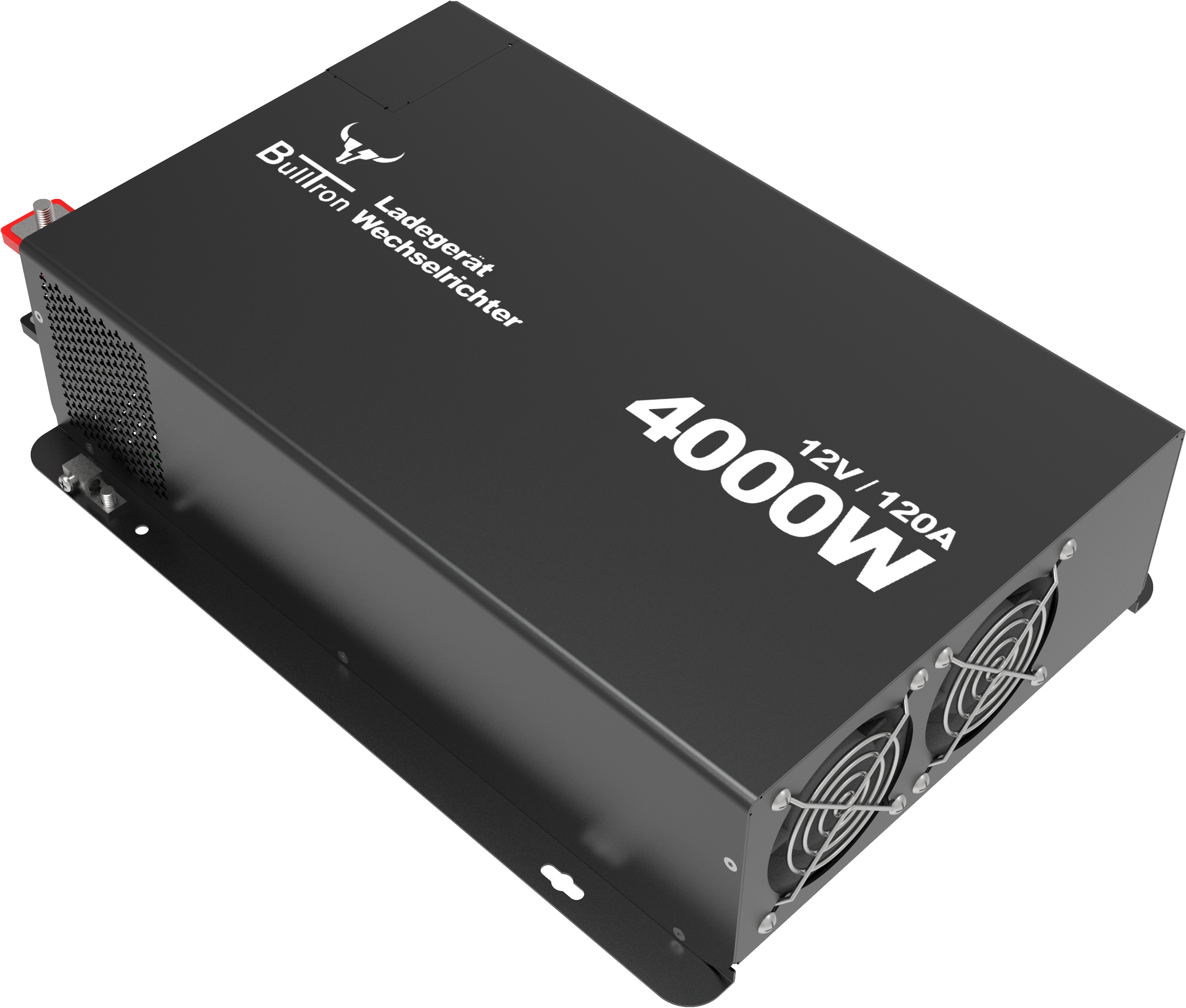

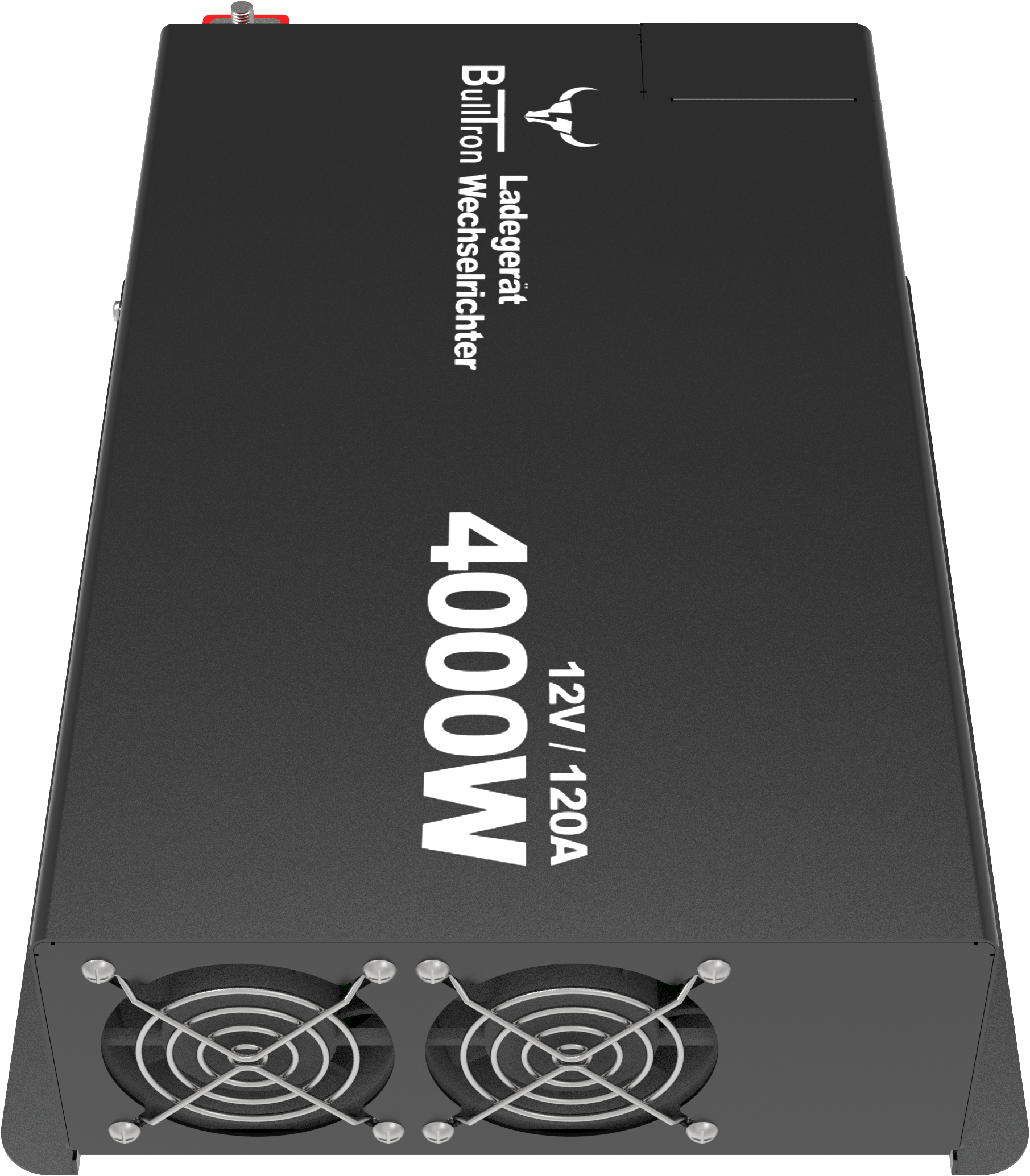

BullTron Charger & Inverter 4000W

BullTron 4000W Combi Charger 120A and Inverter 12V/230V

Optimal Inverter Charger combination with all convenient features
(grid priority circuit, 16A fuse, residual current device, remote control)

BullTron inverters are designed and equipped to meet the requirements of specialized motorhome workshops.
They enable simple and time-saving installation without sacrificing convenience and safety.
All important functions and features are already integrated. This saves a lot of material and time during installation.
In addition, they significantly reduce space and weight, which is always a crucial factor in motorhomes.

With this inverter, you can charge e-bikes and laptops, use a travel hairdryer or kettle, etc., up to 4000W in your motorhome (whether powered by shore power or autonomously).

A powerful 120A charger is integrated for fast charging of even large batteries, as well as a display unit for remote control.


Easy Installation

• All you need to do is connect the battery to the inverter (don't forget a 400A fuse in the positive cable and use a sufficiently thick cable, min. 70mm²).
• Now all you need to do is plug the desired 230V device into the socket and turn on the inverter.
• The integrated display is for remote control of both charger and inverter and handles ON/OFF, program selection, shore power limitation, charger setting, etc.

This significantly simplifies installation and saves a lot of space, time, and money. If necessary, the original 230V line can be restored without tools.
You can now use all sockets and connected 230V devices in your motorhome via shore power or the inverter/battery.
Devices that are not to be used via the inverter/battery, but only with shore power, are simply connected to the WAGO Winsta connector on the AC input.
Additional connection points are provided there.


Advantages of BullTron inverters

• Extremely small dimensions
• Very low weight
• Easy installation
• No additional material or labor required
• Illuminated remote control unit, with 5m cable
• Uses high-quality and durable components
• Integrated short-circuit protection

Technical Specifications

• Type: C4000-12-NVFILS
• Power (continuous/peak): 4000W / 8000W
• Charger power: 120A
• AC Voltage: 230V
• Frequency: 50Hz ± 0.5Hz
• DC Voltage: 12V DC
• Voltage Range: 10V – 15V
• Sine Wave: Pure Sine Wave
• AC Regulation: THD <3%
• Efficiency: 91%
• Protection Class: IP20
• Fuse: 20 A
• Residual current circuit breaker: 30 mA
• Temperature Range: -30°C to +70°C
• Weight: 7.5 kg
• Dimensions (L x W x H) in mm: 430 x 285 x 110
• Installation Options: Vertical or Horizontal
• Certifications: CE, ECE R10, E-Mark

Additional Features

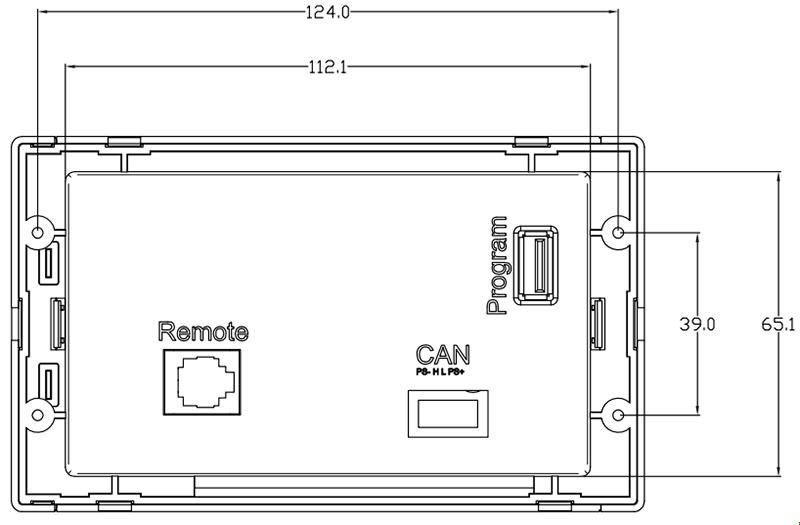

• Monitoring: Display with numerous functions (ON/OFF, program selection, shore power limit, charger settings, etc.),
  with 5m cable for connection to inverter
• Shore power limit: 4-16A individually adjustable (via display)
• Power-Boost-function: Mixture of shore power + inverter operation,
  even with reduced shore power (e.g., 4A = 920W), devices up to 4600W can be used; any missing power is drawn from the battery
• Fan Control: Temperature-controlled speed
• Communication: CAN-Bus
• Inverter Start: Soft start
• Short Circuit Protection: Yes, with internal fuses

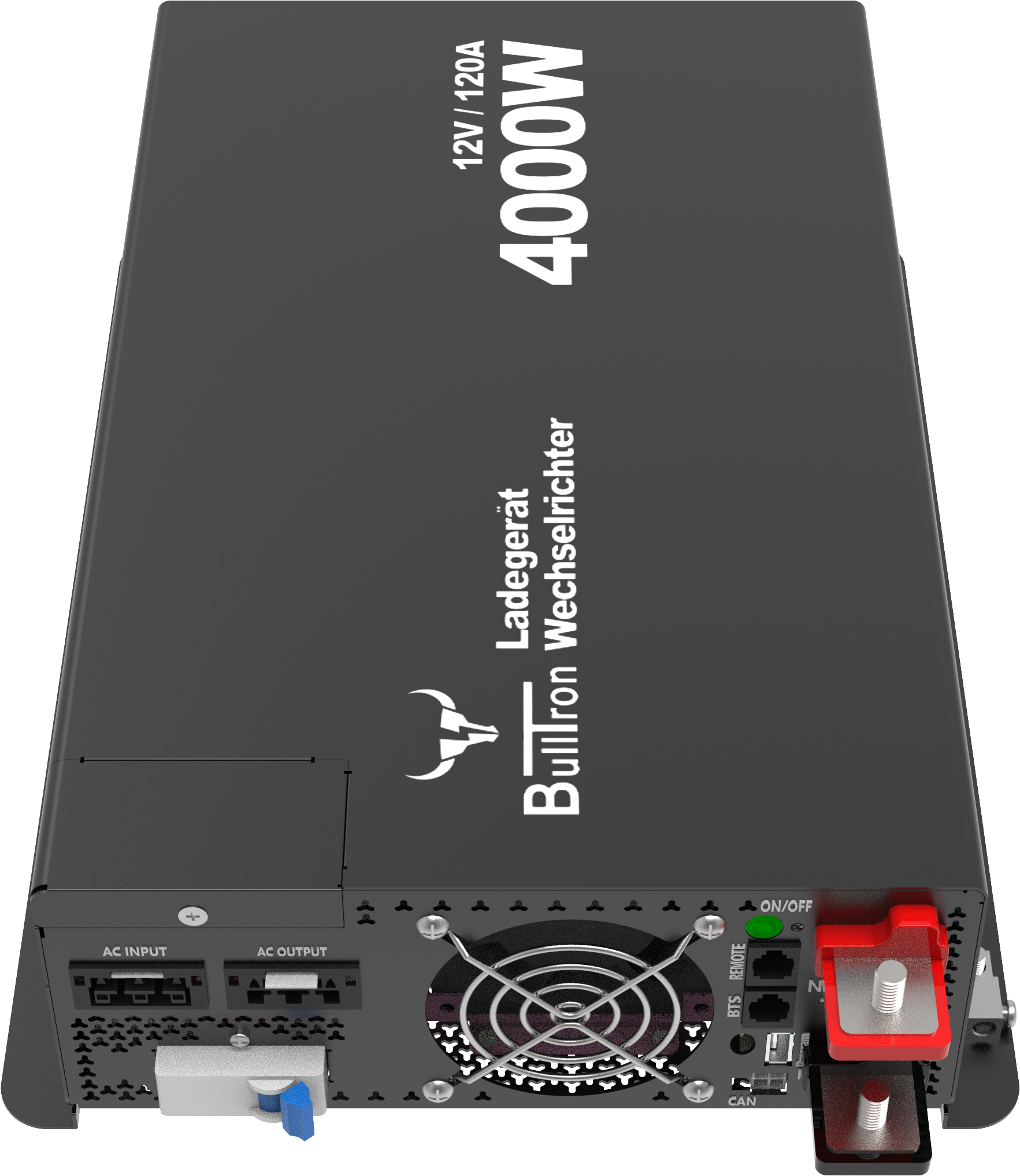

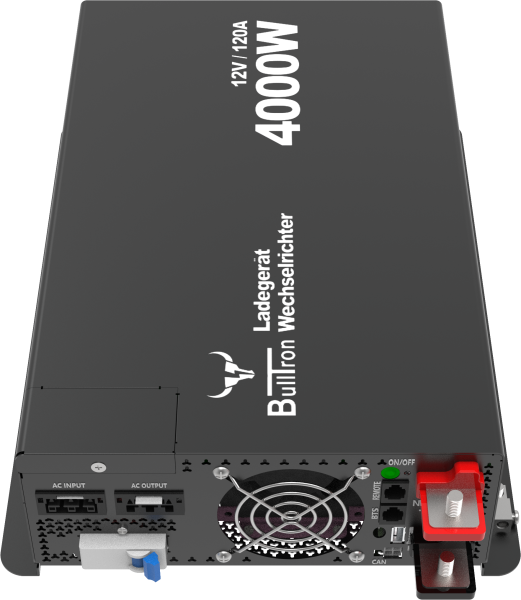

• AC Input Connection: Wago Winsta with strain relief incl.
• AC Output Connection: Wago Winsta with strain relief incl.
• DC Connection (Battery): M8 screw terminal
• Recommended DC cable fuse: 400A
• Recommended DC cable cross-section: min. 70mm² (depending on cable length)
• Warranty: 2-year manufacturer's warranty, 5-year optional, see button above



(Image similar, technical changes subject to change)
