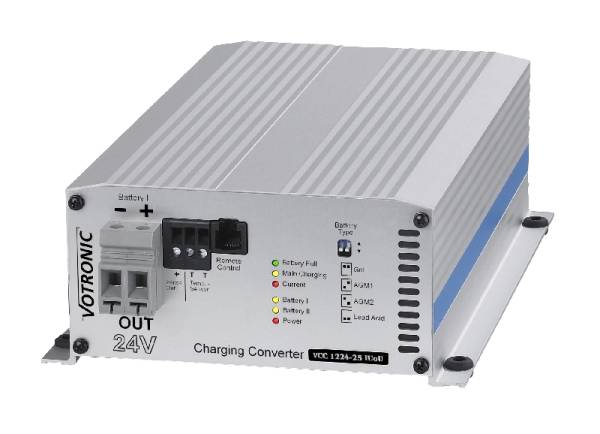

Votronic Charging-Converter VCC 12V-24V 25A
Charging-Converter VCC 12V-24V 25A with galvanic insulation
Perfect charging even on short distancesVotronic Charging-Boosters are made for optimised and quick charging of supply batteries by the onboard generator during driving.
The boosters are easily installed into the charge cabling of the battery. They are increasing the charging voltage and do regulate the quick and soft maximum charging of Acid-, Gel or AGM - batteries realized by IU1oU2 charging curves. 6 LEDs give permanent information of the operating state of the unit. Control input for fully automatic controlled operation is ignition, D+ engine running.
Tech. Data Charging - Converter VCC 1224-25 IUoU
- Charging capacity 24 V / 25 A
- max. current 70 A
- Input Voltage 11-16 V
- Battery capacity 50 - 170 Ah / 220 Ah max.
- Charging type IU1oU2
- Batterytype 4x adjustable Acid, Gel, AGM, AGM-IU1oU2
- Connections for Temperature Sensor / Sensorcable / Remote Control
- Dimensions (WxHxD) 160 x 71 x 245 mm ¹
- Weight 1750 g
- Manufacturer code 3311
¹ Dimensions incl. mounting flanges, without connections
CE, E-Test (EMV/Automotive Regulations)
Package content charger, manual
