MOTOMETER Compression Tester PLUS with Adaptor Set
Benzin-engines 3,5 to 17 bar | Diesel-engines 10 to 60 bar
The Plus Set contains the recording compression tester and the universal adapter set – you can start directly with the compression test – Car/Truck Service is a matter of confidence.
Using the MOTOMETER recording compression testers the check and the documentation of the compression pressure of an engine is comfortable and safe.
The hard-copy recording charts provide direct information on engine condition and with easy documentation.

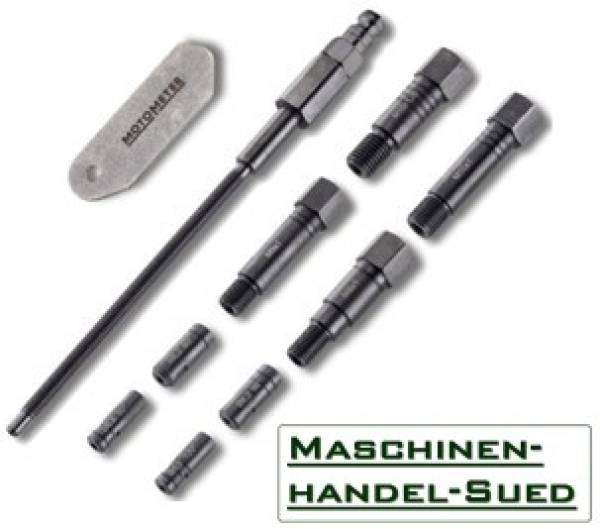

With this universal adapter set you are able to carry out compression pressure measurements at different engines via glow plug bore.
Screw on simply and quick the suitable screw-in adapter and sealing cone on the adapter tube – now you have the suitable adapter.
Time-saving, cost-efficient and compatible for almost all glow plugs.
Content
1 x Recording Compression Tester diesel 10 – 60 bar
1 x Recording Compression Tester petrol 17,5 bar
1 x Pressure hose
100 x Recording charts 10 – 60 bar
100 x Recording charts 3,5 – 17,5 bar
1 x Extension angled 70°
1 x Extension 70mm
1 x Extension 105mm
1 x Rubber cone with socket 63°, Ø 17 mm
1 x Rubber cone with socket 30°, Ø 21 mm
1 x Adapter tube
4 x Screw-in adapter (M8x1, M9x1, M10x1 und M10x1,25)
4 x Sealing cones (Ø 8.2/60°, Ø 8.2/90°, Ø 6.8/90°, Ø 6.8/120°)
1 x Angle gauge
2 x Manuals
1 x Case
List of compatible vehicles
Security Advice:
